flattop barges

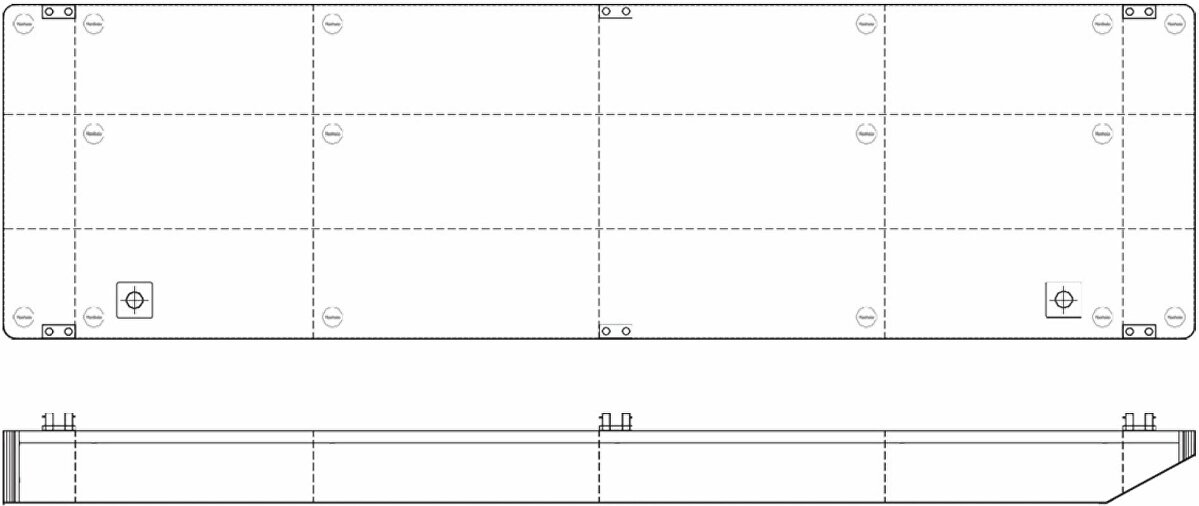

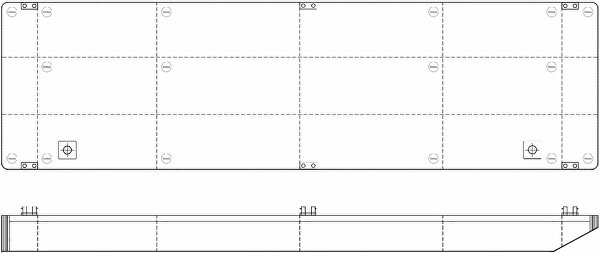

Flattop barge 5018

flattop barge 5018

Specifications

  • Type of vessel
    Flat-top Pontoon
  • Class
    ABS
  • Trading area
    Unrestricted navigation
  • Main dimensions
    50.00 x 18.80 x 3.00 mtr
  • Cargo capacity
    1734 ton at sea
  • Freeboard min.
    0.68 mtr
  • Draught max.
    2.32 mtr
  • GT/NT
    739/221
  • Deck load max.
    20 ton/m2
  • Spuds
    Suitable for 2 x spuds ø914 mm

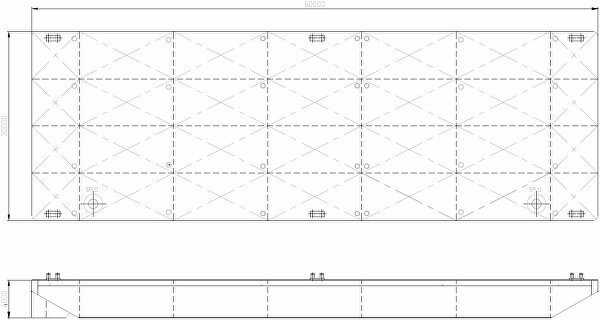

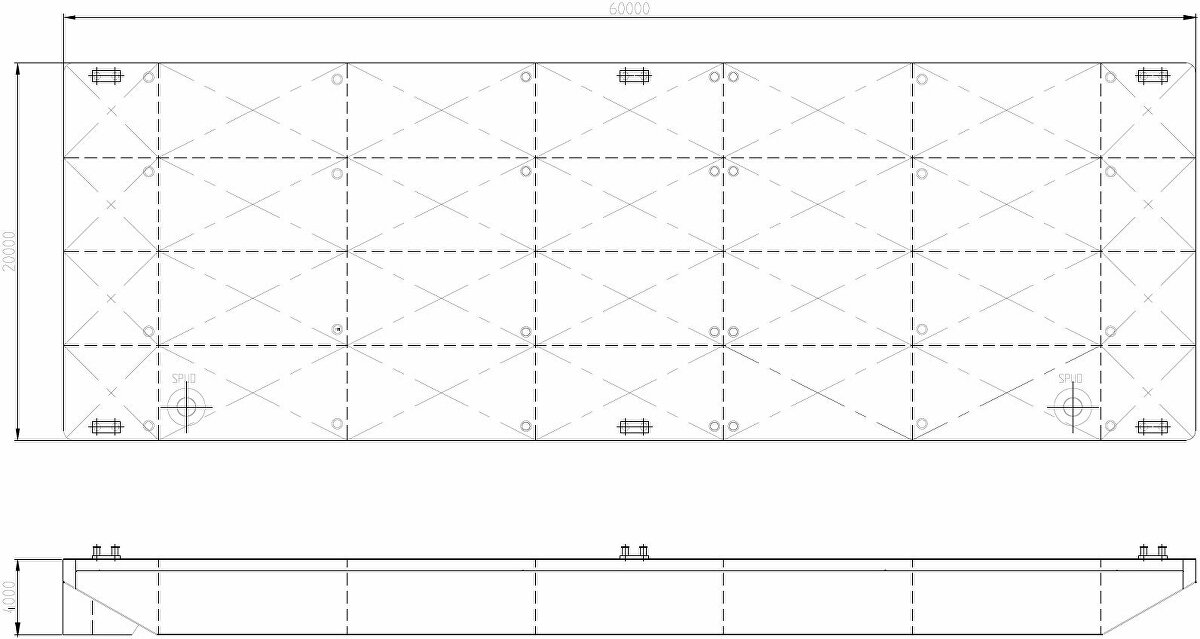

Flattop barge 6022

flattop barge 6022

Specifications

  • Type of vessel
    Flat-top Pontoon
  • Class
    ABS
  • Trading area
    Unrestricted navigation
  • Main dimensions
    60.oo x 22.00 x 4.00 mtr
  • Cargo capacity
    3262 ton at sea
  • Freeboard min.
    0.79 mtr
  • Draught max.
    3.2 mtr
  • Draught empty
    0.54 mtr
  • GT/NT
    1381/414
  • Deck load max.
    20 ton/m2
  • Spuds
    Suitable for 2 x spuds ø914 mm

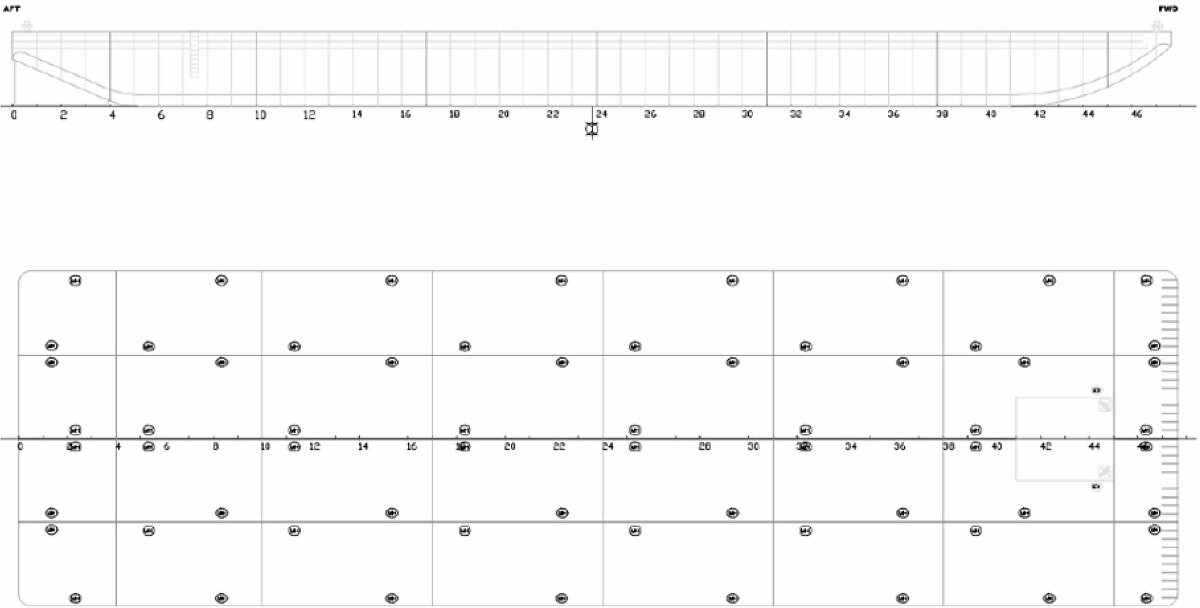

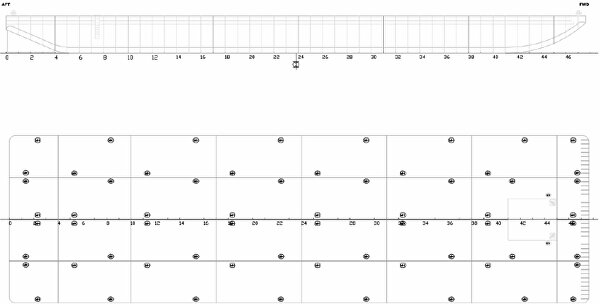

Flattop barge 7622

flattop barge 7622

Specifications

  • Type of vessel
    Flat-top Pontoon
  • Class
    ABS
  • Trading area
    Unrestricted navigation
  • Main dimensions
    76.02 x 22.00 x 4.90 mtr
  • Cargo capacity
    4464 ton at sea
  • Freeboard min.
    1.15 mtr
  • Draught max.
    3.75 mtr
  • GT/NT
    2150/645
  • Deck load max.
    15 ton/m2

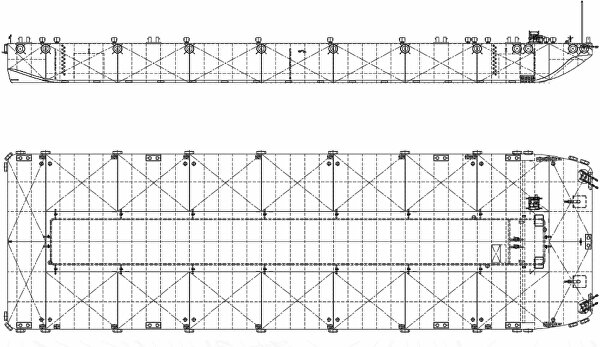

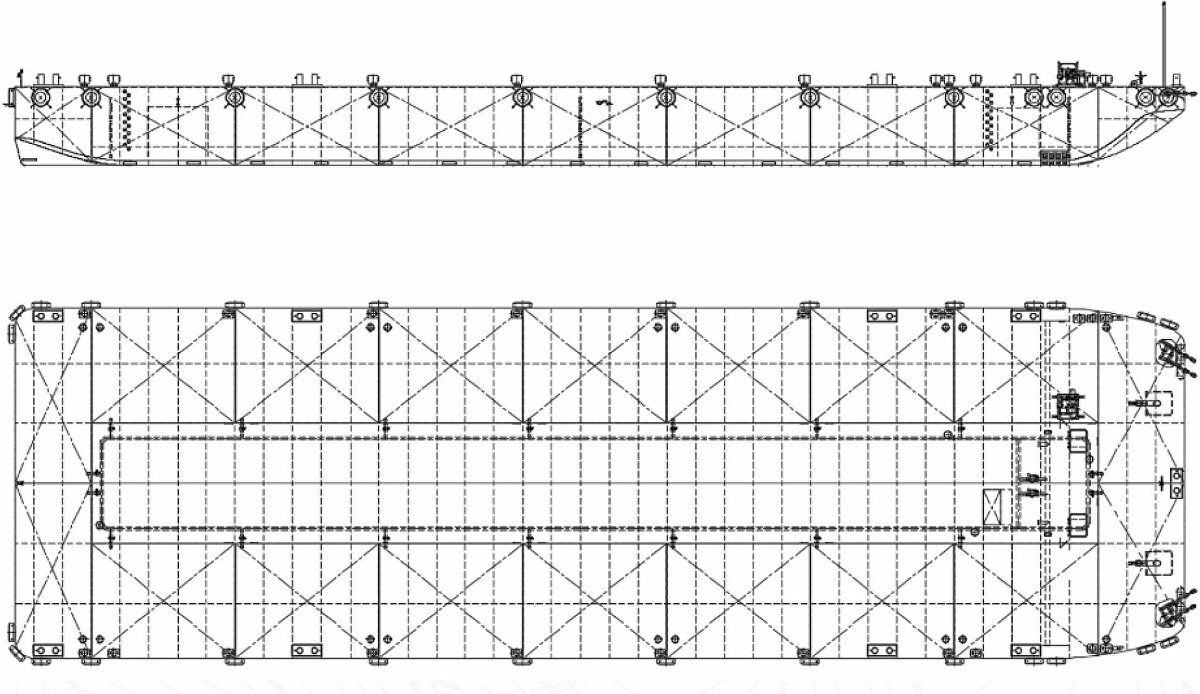

Flattop barge 9127

flattop barge 9127

Specifications

  • Type of vessel
    Flat-top barges with internal ballast system
  • Class
    ABS
  • Trading area
    Unrestricted navigation
  • Main dimensions
    91.50 x 27.40 x 6.10 mtr
  • Cargo capacity
    9906 ton at sea
  • Freeboard min.
    1.20 mtr
  • Draught max.
    4.90 mtr
  • GT/NT
    4146/1248
  • Deck load max.
    20 ton/m2

The above configurations are examples, we can deliver any custom version you want.
