crawler cranes

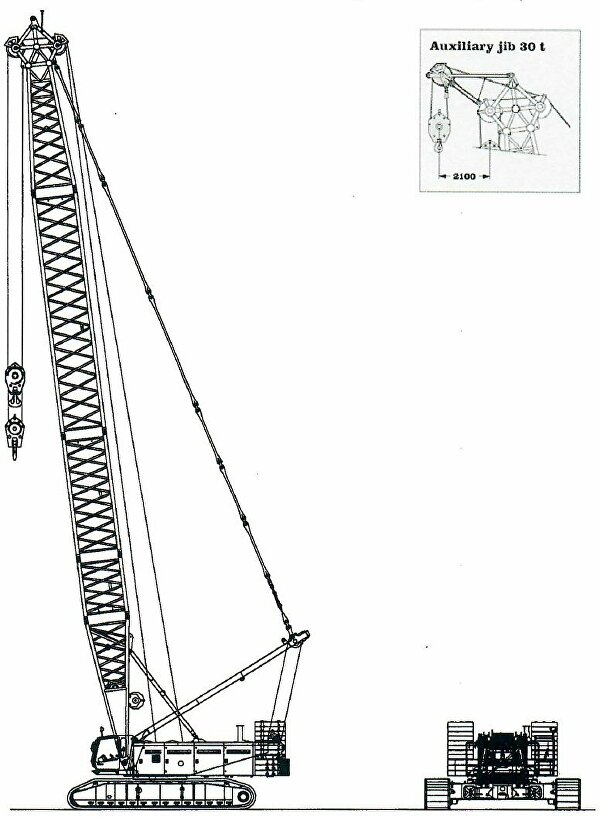

Liebherr LR 1250 litronic

crawler crame LR1250

Specifications

  • Type of crane
    Hydraulic crawler crane
  • Manufacture
    Liebherr
  • Model
    LR 1250 litronic
  • Max. lifting capacity
    250 ton
  • Lift ratings
    Contact us for information
  • Boom
    Heavy duty S-boom
  • Tail swing radius
    6.20 mtr
  • Length of cralers
    9.05 mtr
  • Width of undercarriage
    7.50 mtr
  • Weight basic crane with 23 m boom
    Approx. 200 ton (with 75.3 ton counterweight and 27 ton carbody counterweight)

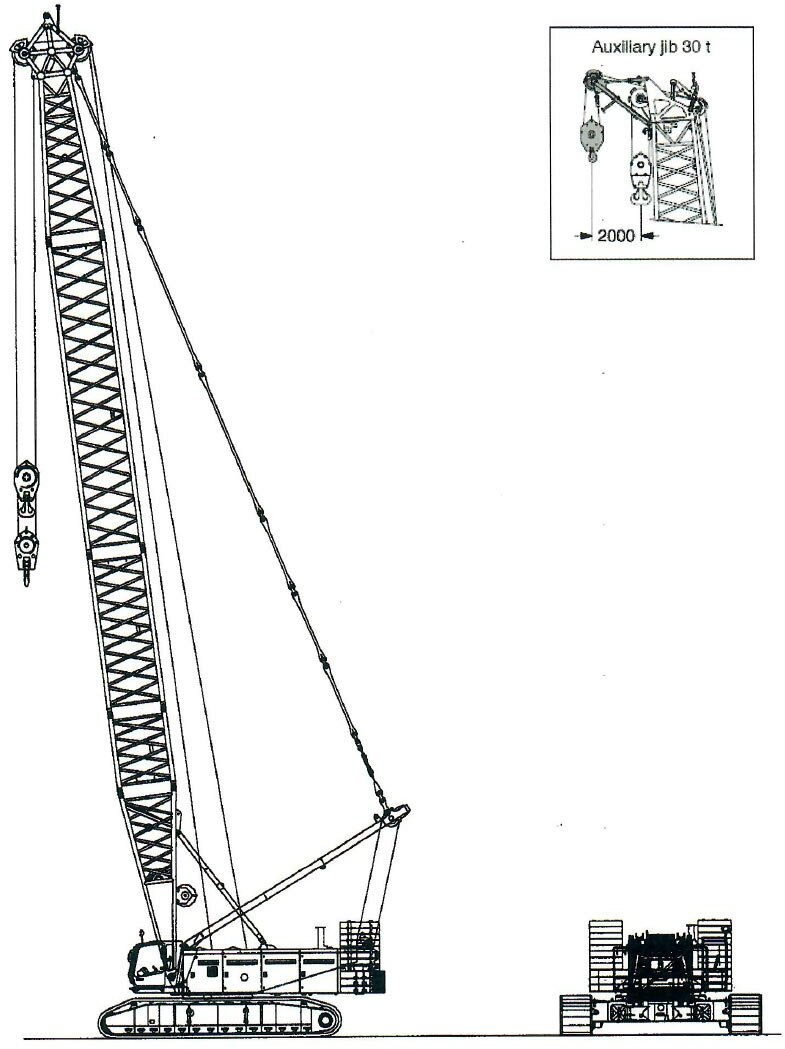

Liebherr LR 1280 litronic

crawler crame LR1280

Specifications

  • Type of crane
    Hydraulic crawler crane
  • Manufacture
    Liebherr
  • Model
    LR 1280 litronic
  • Max. lifting capacity
    280 ton
  • Lift ratings
    Contact us for information
  • Boom
    Heavy duty S-boom
  • Tail swing radius
    6.22 mtr
  • Length of cralers
    9.08 mtr
  • Width of undercarriage
    7.50 mtr
  • Weight basic crane with 23 m boom
    Approx. 225 ton (with 85.5 ton counterweight and 36 ton carbody counterweight)

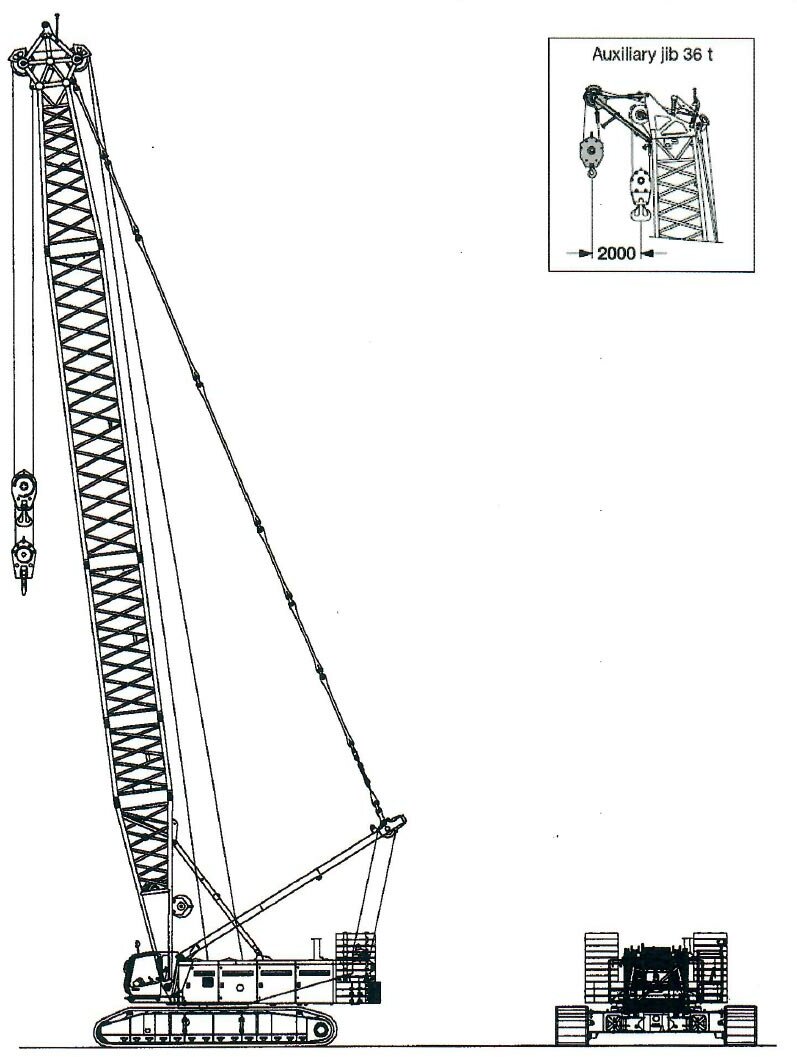

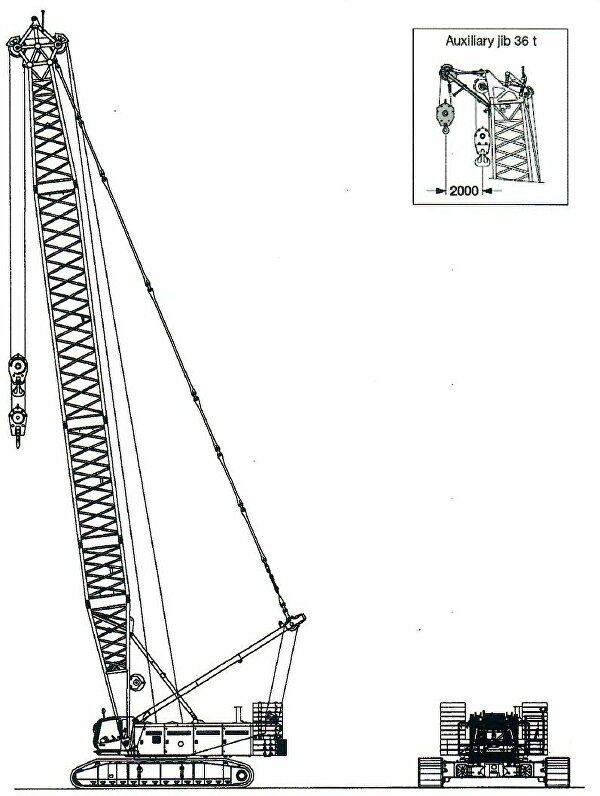

Liebherr LR 1300 litronic

crawler crame LR1300

Specifications

  • Type of crane
    Hydraulic crawler crane
  • Manufacture
    Liebherr
  • Model
    LR 1300 litronic
  • Max. lifting capacity
    300 ton
  • Lift ratings
    Contact us for information
  • Boom
    Heavy duty S-boom
  • Tail swing radius
    6.98 mtr
  • Length of cralers
    9.65 mtr
  • Width of undercarriage
    8.00 mtr
  • Weight basic crane with 23 m boom
    Approx. 290 ton (with 124 ton counterweight and 57 ton carbody counterweight)

The above configurations are examples, we can deliver any custom version you want.
